PSMB (Polysurlyn Moisture Barrier) Aluminum Coil Jacketing With Polysurlyn film Coated
Introduction to Polysurlyn Film :
1. The Polysurlyn film has three layers in total.
First layer: PE film
Middle layer: Zn++ Ionomer Surlyn
Third layer: EAA
2. Thickness: 0.076mm
3. Weight: 80g per square meter
4. JINAN ZHAOYANG ALUMINIUM INDUSTRY CO promises to you as follows:
1) We confirm there is no more than 5 pinhole detections, collectively are detected in the 10 wetted test areas in accordance with ASTM C1729 - Pass criteria for moisture retarder.
2) We confirm that water vapor transmission rate of the moisture retarder will be less than 1.55g/m2/day.

What kind of Aluminum Sheet Coil can be covered with POLYSURLYN FILM?
1. Aluminum series: 1050, 1060, 1100, 3003, 3004, 3105, 5005, 5052, 5754, 8011, etc.
2. Aluminum Thickness: 0.2mm ~ 1.5mm
3. Stainless Steel: SS304, SS316
4. Stainless Steel Thickness: 0.2mm ~ 1.2mm

CLASSIFICATION:
1. Aluminum Coil/Stainless Steel Coil with Polysurlyn Film one side only.
2. Aluminum Coil/Stainless Steel Coil with Polysurlyn Film one side, and Blue Film Protector on another one side.
3. Aluminum Coil/Stainless Steel Coil with Polysurlyn one side, and PE or PVDF color coating on another one side.
4. Aluminum Coil/Stainless Steel Coil with Polysurlyn one side, and Polysurlyn film on another one side.
5. Aluminum Coil/Stainless Steel Coil with Polysurlyn one side, and Kraft Paper on another one side also.

What are the forms of Aluminum/Stainless Steel Sheet Coil covered with Polysurlyn film?
1. Aluminum/Stainless Steel Roll with Polysurlyn film
50meters, 150meters, 100kgs, 200kgs, 250kgs, 300kgs or 500kgs per Coil
Coil ID: 176mm, 200mm, 300mm, 505mm
2. Aluminum/Stainless Steel Coil with Polysurlyn film
1000kgs, 1500kgs, 2000kgs, 2500kgs, 3000kgs per Coil
Coil ID: 505mm
3. Aluminum/Stainless Steel Sheet with Polysurlyn film
1000kgs, 2000kgs per Non-fumigation pallet
4. Corrugated Aluminum Sheet with Polysurlyn film

What is the function of Aluminum/Stainless Steel Sheet Coil covered with Polysurlyn film?
Aluminum/Stainless steel Sheet Coil is specially used in the pipeline insulation industry. Its purpose is the same as aluminum Coil with kraft paper, but the Polysurlyn film has better quality than kraft paper. Aluminum/Stainless steel Sheet Coil is widely used in the thermal insulation, anti-corrosion and moisture-proof of power plant desulfurization, flue insulation, oil field petrochemical, chemical plant, nuclear power plant and other pipelines.

MOQ of Aluminum/Stainless Steel Sheet Coil with Polysurlyn film is 3000kgs.
Packing: Non-fumigation Pallet
Production time: 30 days if the quantity is less than 200 tons.

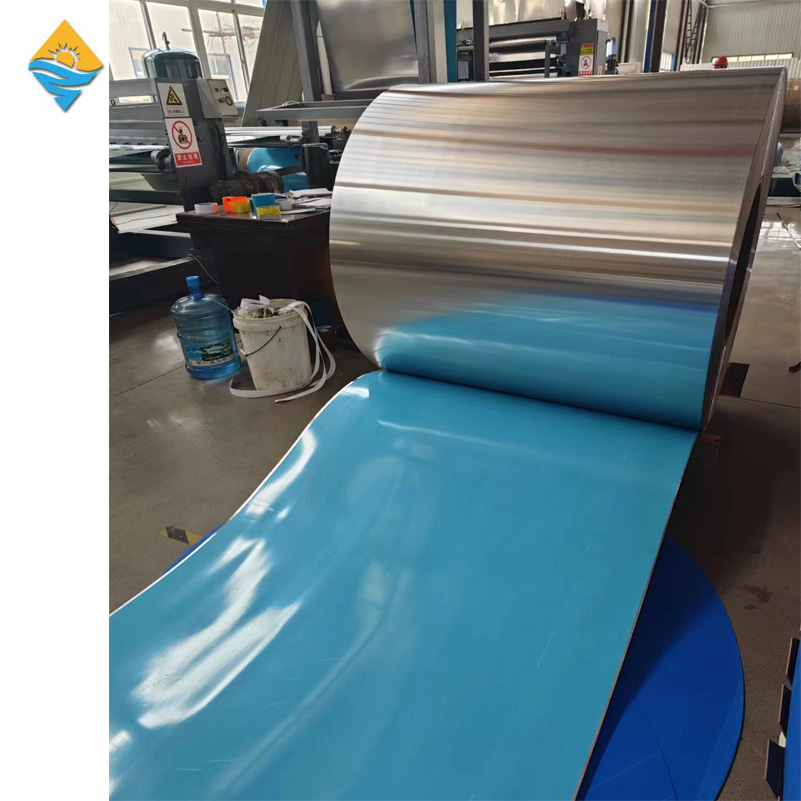

Polysurlyn moisture Barrier Aluminum Coil 048
