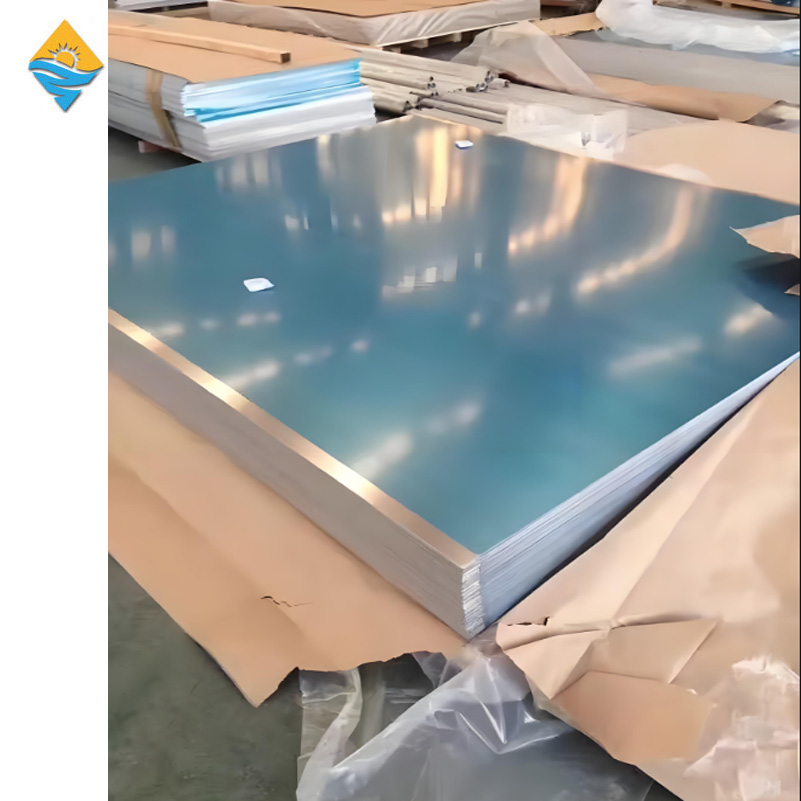

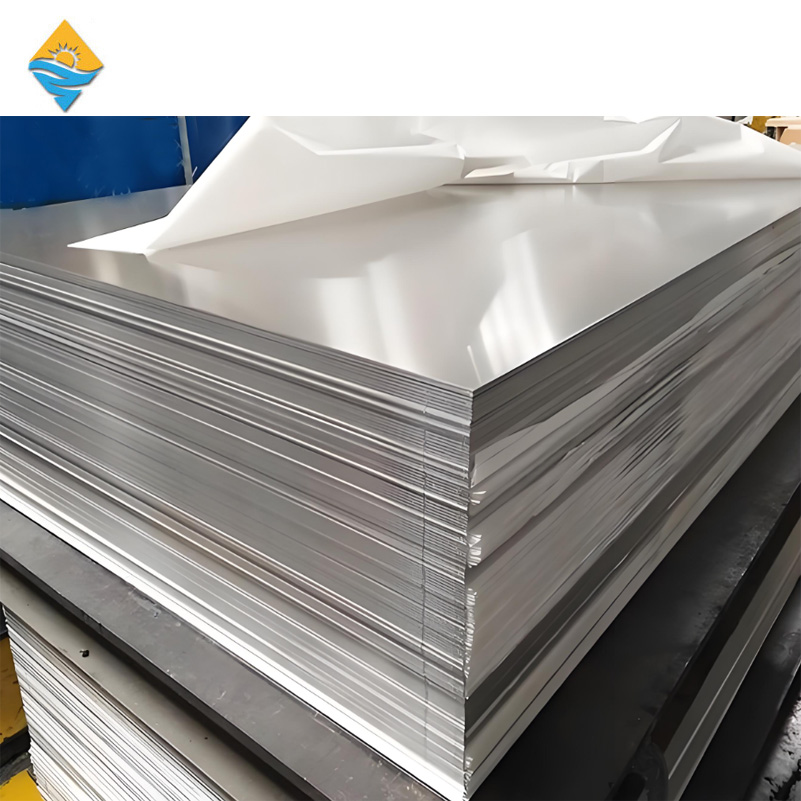

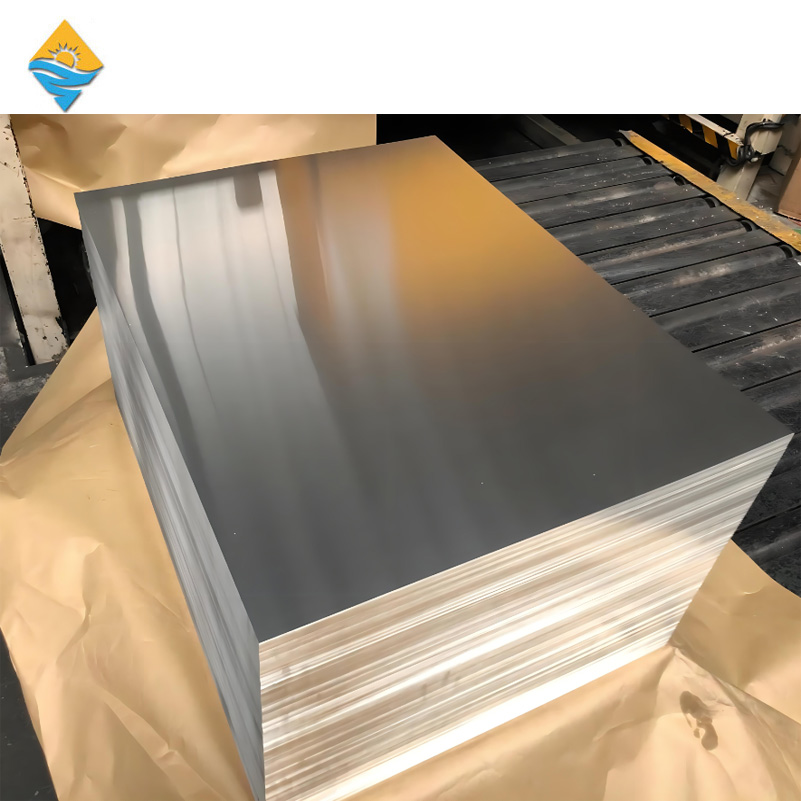

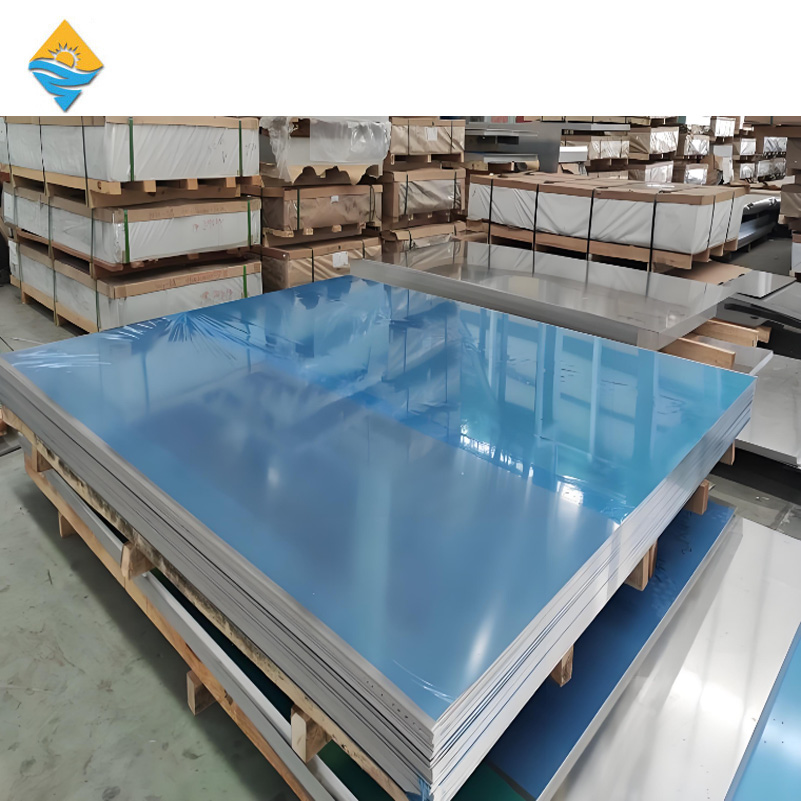

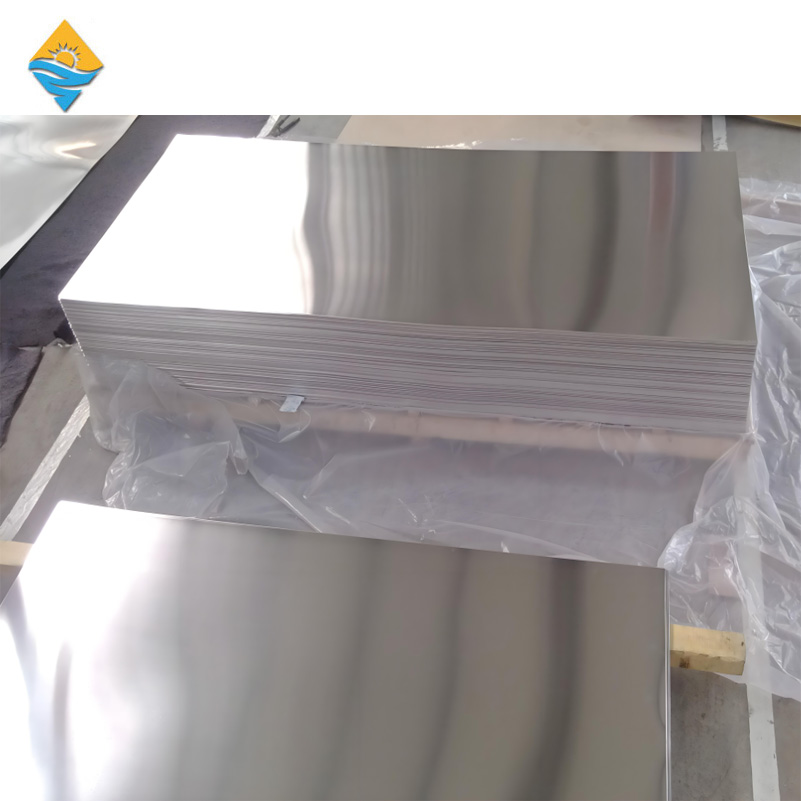

5083 Aluminum Plate / Aluminum Sheet H32 H34

5083 aluminum plate is a common aluminum alloy material, belonging to the Al-Mg alloy, with excellent corrosion resistance, weldability and medium strength, and is widely used in ships, automobiles, chemical equipment and other fields.

Main characteristics:

1. Corrosion resistance: 5083 aluminum plate performs well in marine environments, especially seawater corrosion resistance, suitable for manufacturing ships and offshore equipment.

2. Weldability: Good welding performance, suitable for a variety of welding processes, and can still maintain high strength and corrosion resistance after welding.

3. Medium strength: Moderate strength, suitable for occasions that require a certain strength but do not require extremely high strength.

4. Processability: Easy to process and shape, suitable for cold processing and hot processing.

Chemical composition (typical values):

- Silicon (Si): ≤0.40%

- Iron (Fe): ≤0.40%

- Copper (Cu): ≤0.10%

- Manganese (Mn): 0.40-1.00%

- Magnesium (Mg): 4.00-4.90%

- Chromium (Cr): 0.05-0.25%

- Zinc (Zn): ≤0.25%

- Titanium (Ti): ≤0.15%

- Aluminum (Al): remainder

Mechanical properties:

- Tensile strength: 275-350 MPa

- Yield strength: ≥125 MPa

- Elongation: ≥10%

Application areas:

1. Shipbuilding: used for hulls, decks, etc.

2. Automotive industry: used for body panels, chassis, etc.

3. Chemical equipment: used for storage tanks, pipelines, etc.

4. Construction industry: used for roofs, walls, etc.

Specifications:

- Thickness: 0.2mm to 150mm

- Width: 1000mm to 2500mm

- Length: 2000mm to 12000mm

Surface treatment:

- Ordinary surface: untreated.

- Anodizing: Improve corrosion resistance and aesthetics.

- Coating treatment: Increase corrosion resistance and wear resistance.

Advantages:

- Corrosion resistance: Suitable for harsh environments.

- Good weldability: Stable performance after welding.

- Moderate strength: Suitable for a variety of applications.

Disadvantages:

- Low strength: Not suitable for high-strength occasions.

- Higher cost: Compared with ordinary steel, the price is higher.

Summary: 5083 aluminum plate is widely used in ships, automobiles, chemicals and other fields with its excellent corrosion resistance and weldability. It is an ideal choice for medium-strength occasions.
