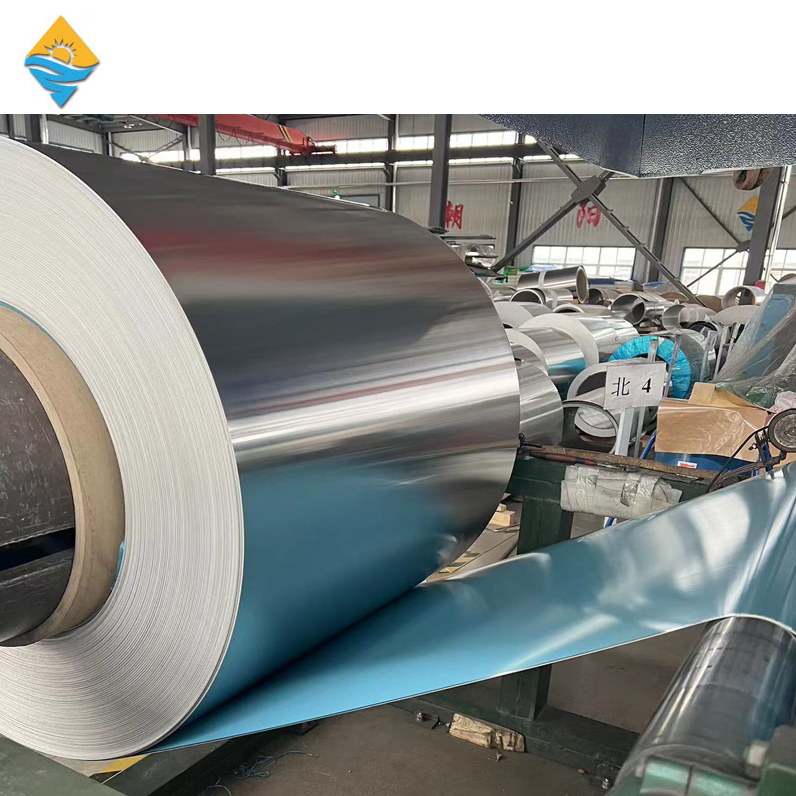

3003 H14 Polysurlyn Moisture Barrier Aluminum Coil

3003 H14 Aluminum coil with Polysurlyn moisture barrier / Polysurlyn Aluminum coil / PSMB aluminum coil 1. thickness: 0.2mm ~ 1.0mm 2. Width: 914mm, 1000mm, 1220mm, 1250mm, etc. 3. thickness of Polysurlyn moisture barrier is 76μm 4. Weight of Polysurlyn moisture barrier is 80g/㎡ 5. MOQ is 8 Mt
Availability:
Quantity:
  • 3003 H14/H24
  • ZHAOYANG
  • A0003-3003Ps

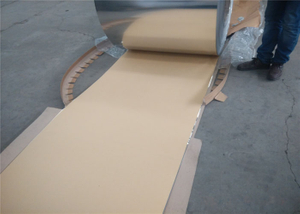

polysurlyn laminated aluminum coil / aluminum coil with polykraf / polysurlyn for moisture barrier

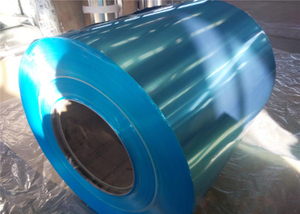

aluminum rolls with Polysurlyn



Applications of aluminum coil with polykraf/polysurlyn jacketing for moisture barrier

In many fields, such as chemical, shipping, metallurgy, thermoelectrical and construction industry, Polysurlyn Laminated Aluminum Coil can be widely used in the equipment protection and insulation decoration. Especially for the refinery storage tanks, pipes and so on.

Polysurlyn Laminated Aluminum Coil is damp-proof, anticorrosive, wearable and durable.



Normal Specifications of aluminum coil with polykraf/polysurlyn jacketing for moisture barrier



 Isulation material

Polysurlyn moisture barrier



 Surface

Stucco embossed or smooth



 Alloy

1050, 1060,1100, 3003, etc



 Temper

H14



 Width

200-1200m



 Thickness

0.1-2mm



 Shape

Rectangle, roll



 Barrier color

Blue



 Barrier thickness

3 mils (76um)



 Protection

Plastic film covered



 Delivery

25- 30 days of 20 tons, according your quantity



 Package

Standard export packing



 MOQ

5 tons



Chemical Composition (%)

Grade

Si

Fe

Cu

Mn

Mg

Zn

Ti

Al


1050

0.25

0.40

0.05

0.05

0.05

0.05

0.03

99.5


1060

0.25

0.35

0.05

0.03

0.03

0.05


99.6


1100

Si+Fe:0.95

0.05-0.2

0.05




99


3003

0.6

0.7

0.05-0.2

1.0-1.5


0.1


Rem.




Features of aluminum coil with polykraf/polysurlyn jacketing for moisture barrier



Why Polysurlyn:
Simple, low cost, and effective resistance to metal jacket and pipe corrosion.
Provides a barrier to crevice or pitting corrosion on the inner jacket surface in cold and hot pipe/tank applications. Provides a barrier to galvanic corrosion of jacket or pipe in hot applications.

Metal jacketing and water don't mix:
When water is present and touching the metal jacket, corrosion can and does occur. This can happen in all applications (hot, cold, rooftop, industrial, commericial, etc.) and with all insulation types.

Polysurlyn is manufactured from 3 layers of film:

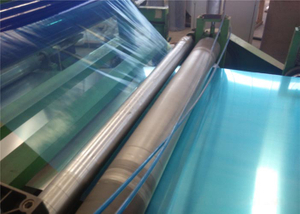

1 mil high-density polyethylene, 1 mil Surlyn, and 1 mil low-density polyethylene, with each layer carefully selected to yieldoptimum performance. This multilayer film is laminated to the interior side of STIPL's aluminium and stainless steel jacketing using precise pressure and heat. Use of 3 mil thick three layer Polysurlyn Moisture Barrier, (PSMB) film avoids the pinholes prevent in standard 1 mil single layer Polykraft.

Polysurlyn Superiority:
In 2005, after careful analysis, STIPL changed from Polykraft to PSMB due to the superior performance and water resistance of the multilayer Polysurlyn film.

Polysurlyn advantages:
Minimal water absorption compared to kraft paper
Will not deteriorate, discolor or shred when exposed to water
Provides abrasion resistance during intallation
Long term durability and resistance to a wide range of environmental contaminants
Metal jacketing with PSMB has an ASTM E8 fame/smoke performance
Aluminium jacketing with PSMB complies with ASTM C1729, Class A

polysurlyn laminated aluminum coil / aluminum coil with polykraf / polysurlyn for moisture barrier

polysurlyn laminated aluminum coil / aluminum coil with polykraf / polysurlyn for moisture barrier
