1050 1060 1100 3003 COLOR COATING ALUMINIUM COIL

Color coating aluminium coil
1. PE coating aluminum coil
   1) PE single coating thickness is 15~18 micron
   2) PE double coating thickness is 25~28 micron
2. PVDF coating aluminum coil
   PVDF coating thickness is 25~28 micron
Availability:
Quantity:

Product Description

Color coated aluminum coil is the surface coating and coloring treatment of aluminum plate or aluminum coil. The common types are fluorocarbon (PVDF) color coated aluminum coil and polyester (PE) color coated aluminum coil.

Material: 1050 1060 1100 3003 3004 3105 5052 8011
Temper:  H14 H24 H32 H34 HO H26 H18 H111 H112
Thickness: 0.2mm ~ 1.5mm
Width: 300mm 500mm 600mm 800mm 1000mm 1200mm 1220mm 1250mm 1300mm 1500mm
MOQ: 3000KGS
Thickness tolerance: +/-0.02mm
Weight tolerance is +/-10%

Color coated aluminum coil is a very popular new material. The color coated aluminum coil plate has good environmental protection. Now it is an era that more and more attention is paid to environmental protection. The color coated aluminum coil plate is resistant to salt, alkali, acid and rain. It will not corrode or produce toxic bacteria, and will not release any toxic gas. It will not cause corrosion of keel and fixed parts, and has flame retardancy.

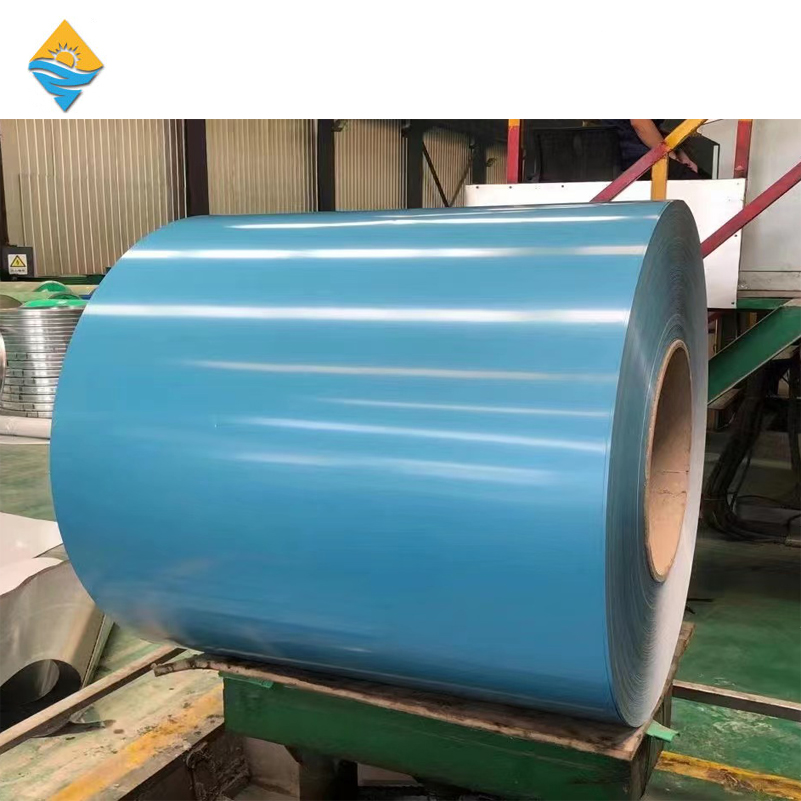

 color coated aluminum coil 043

1,standard:ASTM B209,GB/T3880-2006,etc.
2,material
1000 series:1050,1060,1070,1100
2000 series:2024
3000 series: 3003,3004,3105
5000 series:5052,5083,5754,5005,5086
6000 series:6063,6061,6082
7000 series:7075
8000 series:8011,8006,8079


1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate

Use

The color coated aluminum coil has a rich range of colors. Whether it is a residential building, a large commercial network or a large exhibition center, the color coated aluminum coil can add color to it. Good plasticity and machinability make it an ideal material for various architectural shapes. The product has a wide range of applications: Architecture (aluminum-plastic panel, aluminum honeycomb, roof panel, fire-resistant plastering panel, aluminum ceiling, shutter, rolling shutter door, garage door, canopy, gutter), electronic appliances (computer chassis, electrical panel), lighting, furniture, solar reflective panel, air conditioning duct, etc.


Product features

Flatness: no compound high-temperature indentation on the surface, no residual stress on the plate surface, and no deformation after shearing.

Decorative: painted wood grain and stone grain. It has a realistic physical feeling and a vivid natural beauty. The pattern is made at will, giving customers a wide range of personal choices, enriching the cultural connotation of the product and giving people more enjoyment.

Weather resistance: the paint pattern made by roller coating and high-temperature baking has high gloss retention, good color stability and minimal color difference. Polyester paint is guaranteed for 10 years, and fluorocarbon paint is guaranteed for more than 20 years.

Mechanical properties
The color coated aluminum coil plate has the bending strength required by the decorative plate. Under the four seasons climate, the changes of wind pressure, temperature, humidity and other factors will not cause bending, deformation and expansion.

Environmental protection
It is resistant to salt alkali acid rain corrosion. it will not produce corrosion or toxic bacteria, will not release any toxic gas, will not cause corrosion of keel and fixed parts, and has flame retardancy. It is not lower than grade B1 according to national regulations.

Detailed Photos

1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate



Packaging & Shipping

1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate

1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate

Certifications

1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate

Our Advantages

1100 H14/H24 Polyester Coated Color Aluminum Coils for Building Decorate

QUALITY
JINAN ZHAOYANG ALUMINIUM INDUSTRY CO., LTD. has the advanced testing equipments and builds up a professional scientific research team,strictly control the quality on each steps of production. including inspection on raw materials entry, product's color analysis during production,T-bend test, impact test, salt-spray test, tensile test and packaging testing on exported products , which ensures its integrated performance such as corrosion resistance, coating stickiness etc. and the safety of transportation.

SERVICE
Nowdays, economic globalization promotes international trade, and our products are sold to many countries and regions in the world.
This makes our products very popular not only in the domestic market, but also in Europe, the United States, Mexico, Colombia, Chile, New Zealand, Dubai, Pakistan, Singapore, Thailand, the Philippines, Vietnam and other countries and regions, winning the trust and praise of customers and successfully moving from home to abroad.
