3003 H22 Diamond Aluminum sheet

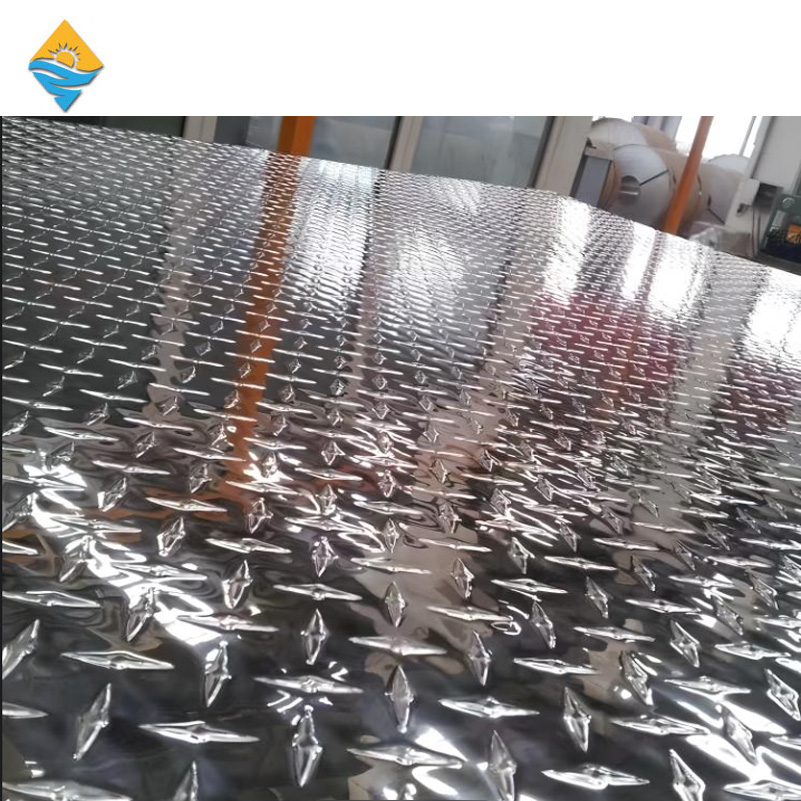

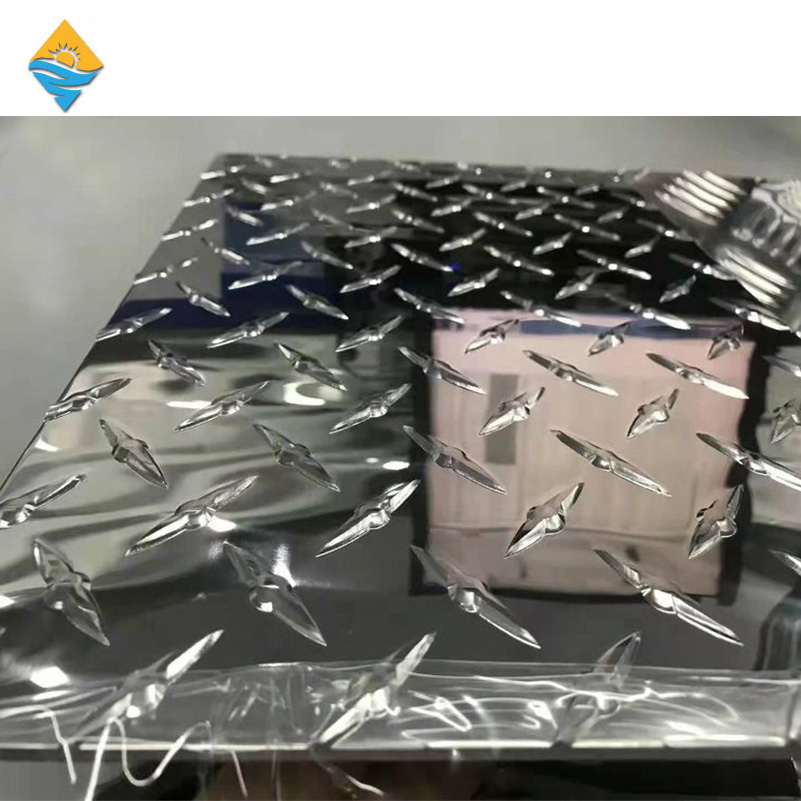

Diamond Aluminum sheet
One bar aluminum sheet
We have two types, one is bright surface type, another one is normal surface type.

Quantity:
  • 3003 H22
  • ZHAOYANG
  • A0010-3003Ds

3003 Diamond Aluminum sheet


1. Why do you choose Aluminum Alloy?

Aluminum has a series of excellent properties: density, weight and strength is not high, easy processing, corrosion resistance, electrical conductivity, thermal conductivity, highly reflective, non-magnetic
Due to these characteristics, aluminum and aluminum alloy has a wide range of applications.



2. Main Application of Ribbed Aluminum Tread Plate

Tray, Road traffic signs, Car license, Automotive body.

Wall decoration,Auto radiator, Food container, Aluminum ceiling, Battery shell, LED Lighting, Kitchen rinse bath, lamp shade ,heat exchanger, nameplate, Power transformer, pallet etc.

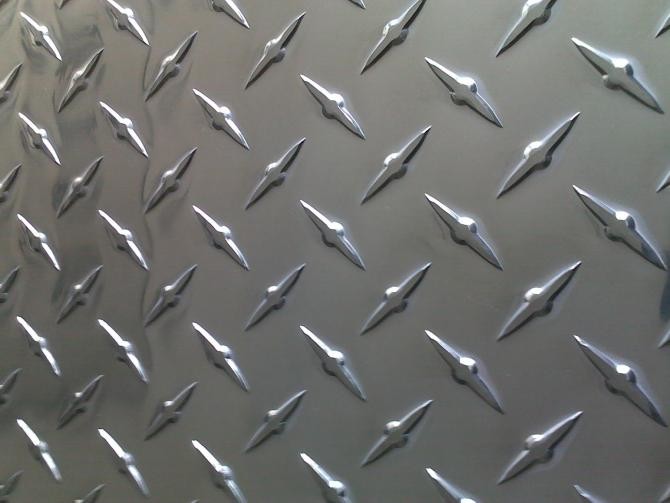

3003 H14 Ribbed Aluminum Sheet / Aluminum Tread Plate For Refrigerator / Solar Air Conditioner

Product checkered aluminum sheet
Thickness 0.8 mm-6.0 mm
Width 20mm-1500mm
Weight 2000kg-3000kg
Material

1050,1060,1100,3003,3004,3005,3105,5052,

5005,5754,5083,6061,6063 etc

Temper

O,H12,H14,H16,H18,H24,H26,

H32,H34,H111,H112,T3,T5,T6 etc

Surface with kraftpaper,or film as per clients' request
Packing Export standard wooden pallets (as per requirements )
Payment Terms 100% irrevocable L/C at sight or 30% T/T in advance as deposit,70% balance before shipment
Minimum Order Quantity 2.5 tons per size
Delivery time 15-30 days after receiving L/C or deposit
Loading Port Qingdao China (any port in China )
Remark Specific requirement of alloy grade,temper or specification can be discussed at your request



Alloy Si Fe Cu Mn Mg Cr Zn Ti Zr Impurity Al
2014 0.5-1.2 0.7 3.9-5.0 0.4-1.2 0.2-0.8 0.1 0.25 0.15 - 0.15 Rest
2017 0.2-0.8 0.7 3.5-4.5 0.4-1.0 0.4-0.8 0.1 0.25 0.15 - 0.15 Rest
2024 0.5 0.5 3.8-4.9 0.3-0.9 1.2-1.8 0.1 0.25 0.15 - 0.15 Rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 - - 0.15 Rest
5056 0.3 0.4 0.1 0.05-0.20 4.5-5.6 0.05-0.20 0.1 - - 0.15 Rest
5083 0.4 0.4 0.1 0.40-1.0 4.0-4.9 0.05-0.25 0.25 0.15 - 0.15 Rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 0.2 0.15 - 0.15 Rest
6061 0.4-0.8 0.70 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 - 0.15 Rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 - 0.15 Rest
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 0.2 0.1 - 0.15 Rest
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 5.7-6.7 0.06 0.08-0.15 0.15 Rest
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 - 0.15 Rest



3. Why do you choose our Company?

Jinan Zhaoyang Aluminum Industry Co. Ltd is located in the land of rose, Pingyin County in Jinan. Our products have passed the ISO2000 Quality System Certificate.

Our main products are aluminum sheet, aluminum coil, corrugated aluminum roofing sheet , embossed aluminum sheet/coil ,color coated aluminum coil/sheet ,aluminum foil, aluminum strip, aluminum wire ,and so on. Our products are exported to America, Africa and Southeast Asia, etc and also sold to over 180 medium and large enterprises in Zhejiang, Shanghai, Hangzhou, Wuhan, Shandong and northeast China.
