1100 3003 5052 Ppainted Aluminum coil color coating Aluminium coil

Aluminum grade: 1100, 1050, 1060, 3003, 5052, etc.
Thickness: 0.3mm ~ 1.0mm
Uses: Signs, Building, making aluminum roofing sheet, decoration, etc.
Paint: PE paint, PVDF paint

Quantity:
  • 5052 H32
  • ZHAOYANG
  • A0010-5052Cp

1. About Details of Order



1.Tolerance: thickness tolerance +/-0.02mm, total quantity tolerance is +/-10%.

2.Surface Quality :

Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use,

3.Mechenical Property:

Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, JIS Standard

4.Packing:

First, plastic cloth with drying agent inside;

Second, Pearl Wool ;

Third, wooden cases with dry agent , fumigation wooden pallets, aluminum surface could cover blue PVC film

5.Certificate: ISO9001:2008, SGS and ROHS(if client request, paid by client), MTC(plant provided), Certificate of Origin(FORM A, FORM E, CO), Bureau Veritas and SGS (if client request, paid by client), CIQS certificate

6.Month Capacity: 2000MT/Month

7.Trade Terms: EXW,FOB,CIF,CNF

8.Payment: T/T or L/C at sight



2. About Painted Aluminum



Painted Aluminum: 1100, 3003, 3105, 5005 and 5052 are just some of common alloys available in painted product. Painted aluminum is produced in a broad range of mechanical properties and the spectrum of finishes includes high durability exterior coatings, specialized epoxies, polyesters, textured polyesters, fluorocarbons and metallics as well as wash coat primers. Standard colours can be selected from or custom colour matching can be done to specification. Most coatings are available on one and two sides.



PE Painted: mainly applied in interior decoration

PVDF Painted: mainly applied in exterior decoration




Specifications
5052-H32 Sheet & Coil ASTM B 209 & QQ-A-250/8
5083-H116 Sheet, Plate & Coil ASTM B 928
5086-H116 Sheet, Plate & Coil ASTM B 928
5383-H116 Sheet, Plate & Coil ASTM B 928
5456-H116 Sheet & Plate ASTM B 928
1100-H14 Sheet & Plate ASTM B 209
3003-H14 Sheet & Plate ASTM B 209
3105-H24 Polar White 1 Side ASTM B 209
6061-T6/T651 Sheet & Plate ASTM B 209 & QQ-A-250/11
6061-T6/T651 MIL-DLT 32262 Ballistic Armor Plate ASTM B 209 & MIL-DLT-32262
Item Test Item Performance indicators for PE Performance indicators for PVDF
1 Color Difference ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ≤5 ≤5
3 Coating Thickness Two layers Min 23μm Two layers Min 25μm
Three layers Min 30μm Three layers Min 34μm
4 Pencil Hardness ≥HB HB
5 T-bend ≤3T ≤3T
6 Adhesion Grade 0 Grade 0
7 Impact ≥20kg.cm ≥50kg.cm
8 Boiling water Resistance 4h No change 4h No change
9 Solvent Resistance 200 times no break 200 times no break
10 Acidity Resistance 5%HCL 24hrs No change 5%HCL 24hrs No change
11 Alkali Resistance 5%NaOH 24hrs No change color E≤2.0 5%NaOH 24hrs No change color E≤2.0
12 Oil Resistance 20#oil 24hrs No change 20#oil 24hrs No change
13 Salt Spray Resistance 720hrs ≤Grade 1e 720hrs ≤Grade 1e
14 Abrasion resistance ≥5L/μm ≥5L/μm
15 Dirt Resistance ≤5% ≤5%

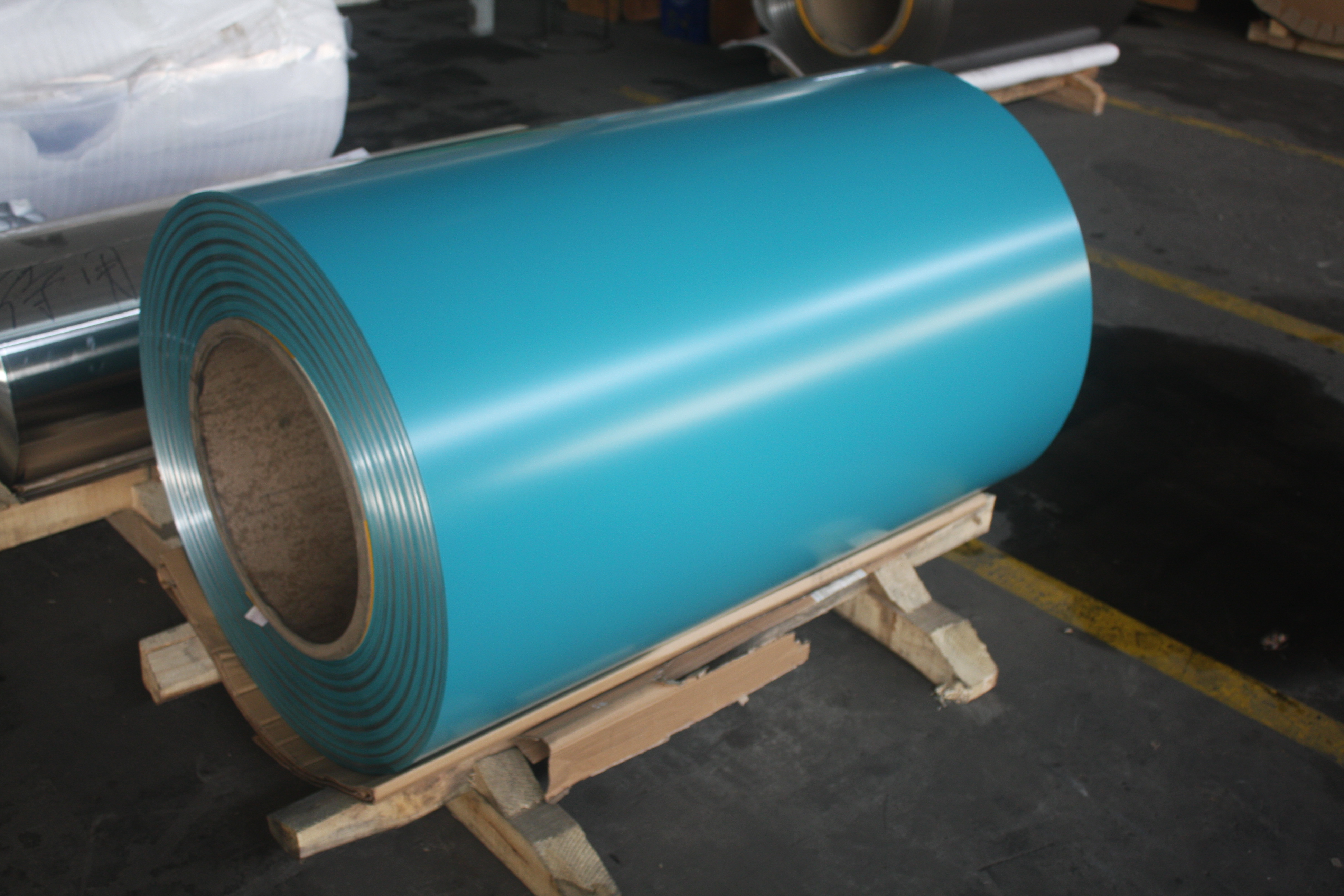

color coating aluminum coil
